The Night Hawk Behind-Grille Light Kit improves the 2022+ Ford Raptor’s style and performance. Mounted neatly behind the grille, it delivers a stealthy, hidden-lighting look when day turns to night. Supplied with a power harness and utilising the Ford incabin switch, the setup provides powerful illumination beyond standard high beams while enhancing the Raptor’s style.

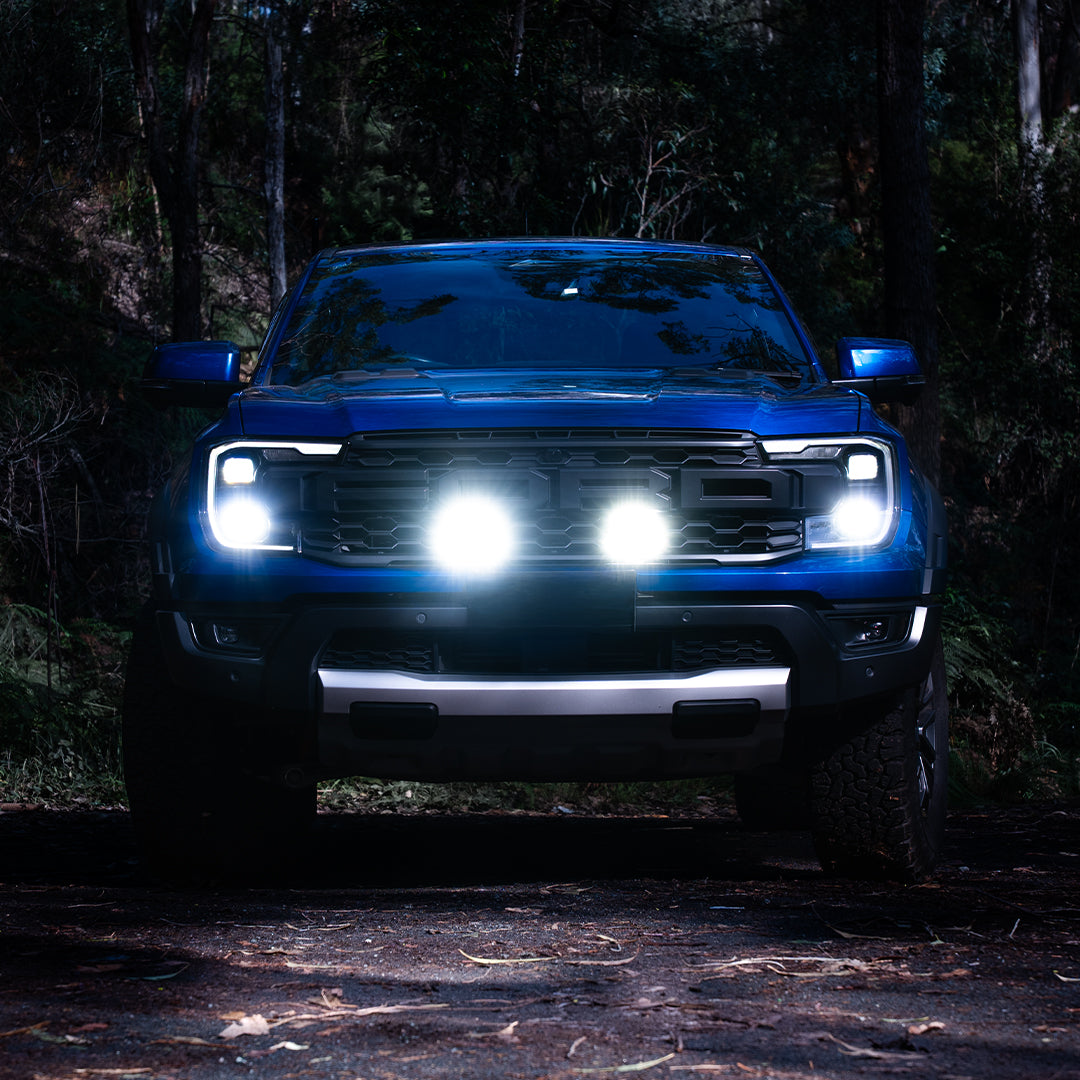

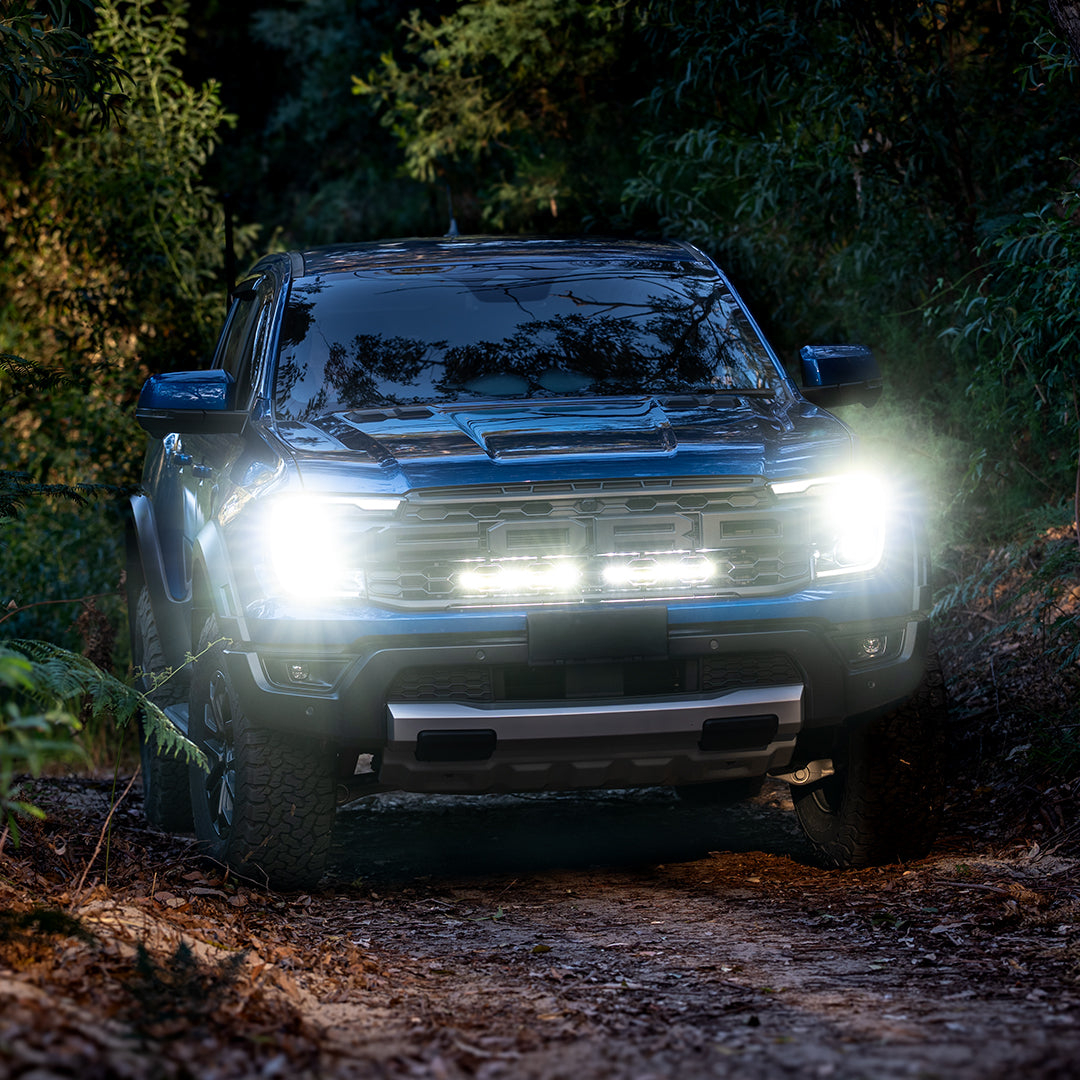

Choose from two powerful options: Twin 13" Light Bars deliver impressive spread and distance for off-road or rural driving, while Twin 7" Driving Lights offer greater output and long-distance light to enhance visibility further down the road.
Installation is straightforward with vehicle-specific, body-mounted brackets and requires only minor plastic trimming behind the grille. Enjoy a clean, factory-style fit with no need for bull bars or external mounts.
LIGHT BAR OR DRIVING LIGHT OPTION
EFFORTLESS, SECURE INSTALLATION:
SLEEK DESIGN:
| 7” Night Hawk Driving Light (Single) | 13” Night Hawk Light Bar (Single) | |
| POWER | 85W | 39W |
| CURRENT DRAW | 5.9A @14.4V | 2.7 A @14.4V |
| VOLTAGE RANGE | 10-30V DC | 10-30V DC |
| LED TYPE | 19 x Genuine OSRAM LED’s | 9 x Genuine OSRAM LED’s |
| LUMINOUS FLUX | 7,570 (effective) without protective covers | 3,100 (effective) without protective covers |
| COLOUR TEMPERATURE | 5700K (72 CRI) | 5700K (72 CRI) |
| COMPLIANCE | CE, UNECE R10, IP67 & IP69K, RoHS, SAE J575 - Shock/Vibration | CE, UNECE R10, IP67 & IP69K, RoHS |
| MAX DISTANCE @ 1 LUX | 967m (spot covers, pair of lights) | 490m (no covers, single light) |
| MAX WIDTH @ 1 LUX | 110m (flood covers, pair of lights) | 33m (no covers, single light) |
