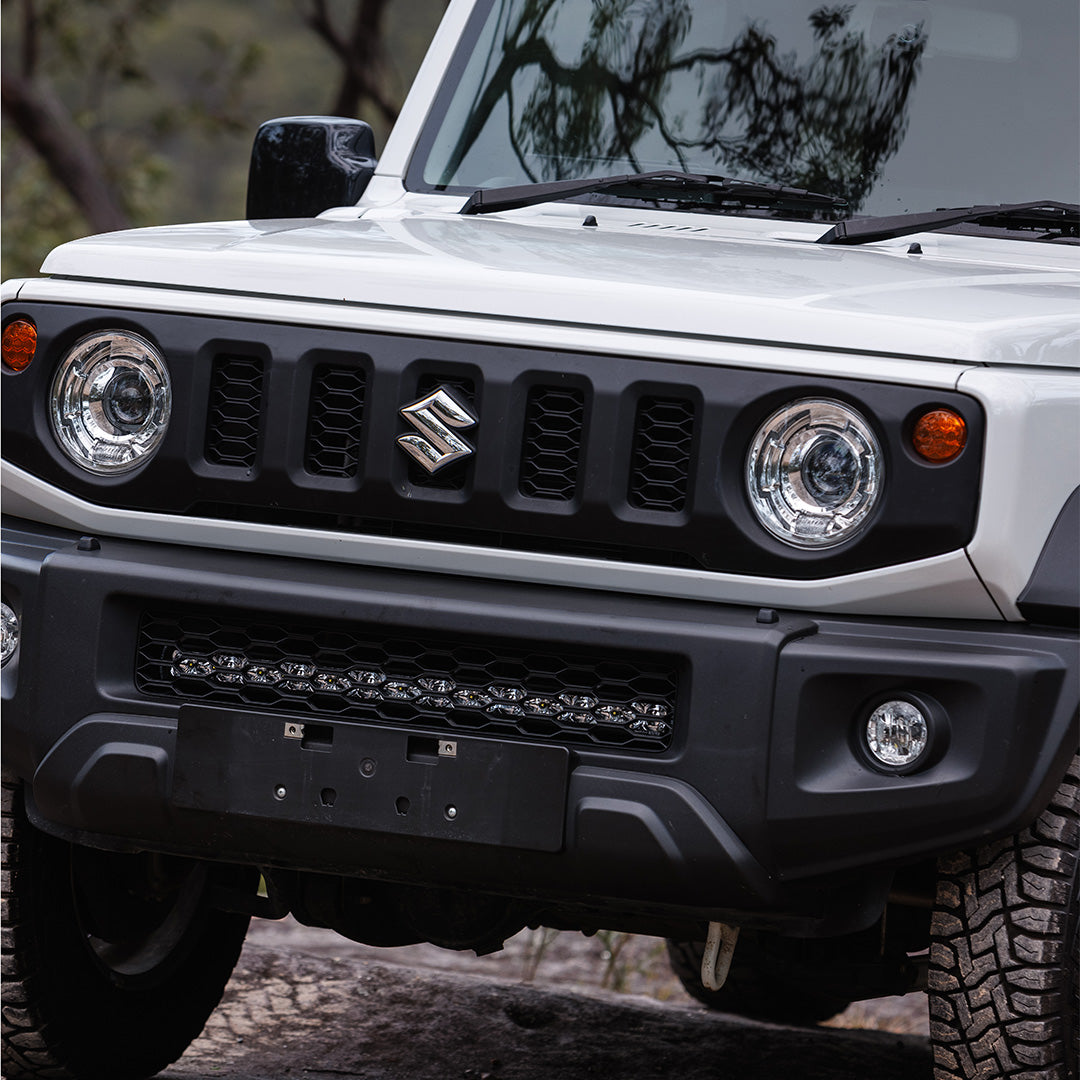

The Behind Grille Light Kit for the Jimny delivers greater illumination over the factory high beams without compromising the Jimny’s styling.

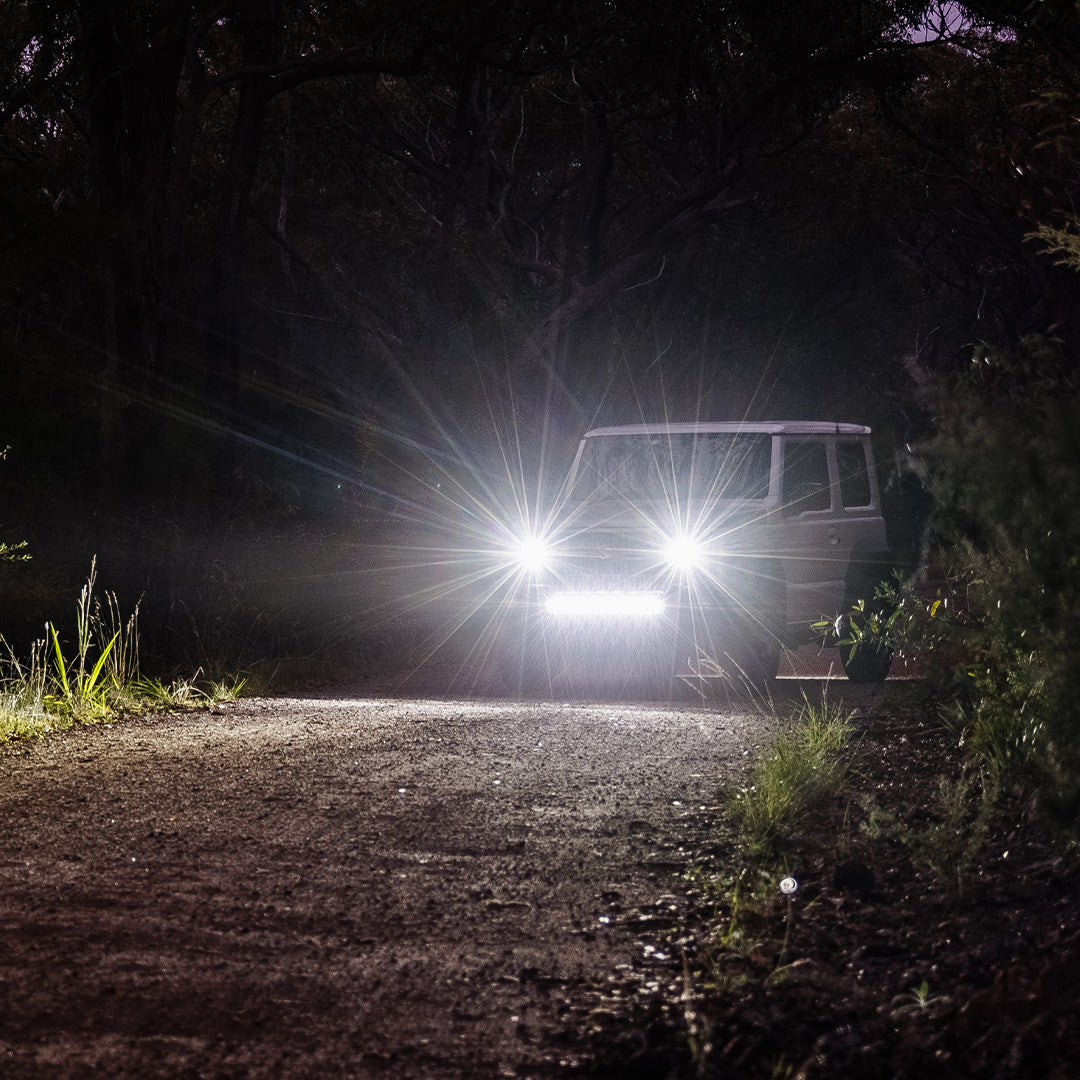

The 28” light bar provides an impressive spread and distance making it perfect for off-road exploration or rural night driving. The installation is straightforward with vehicle-specific, body-mounted brackets that require only minor plastic trimming to the plastic lower radiator shroud. A clean, factory-style fitment with no need for bull bars or external mounting protrusions.
Whether you’re after a discreet lighting upgrade or simply more confidence behind the wheel at night, this Night Hawk Behind-Grille setup is the perfect match for your Jimny.
SPECIFICATION
KIT INCLUDES:
• 1 x Night Hawk 28” Light Bar
• 1x Wiring loom
• 1 x Jimny Bracket Kit w/Hardware
• 1 x Headlight Adaptor
• 1x OEM style switch
*Vehicle Brackets are not sold separately
LIGHT SPECS:
| 28” Night Hawk Light BAR | |
| POWER | 90W |
| CURRENT DRAW | 6.3A @14.4V |
| Voltage Range | 10-30V DC |
| LED TYPE | 21 x Genuine OSRAM LED’s |
| Luminous Flux | 7,360 (effective) without protective covers |
| COLOUR Temperature | 5700K (72 CRI) |
| Compliance | CE, UNECE R10, IP67 & IP69K, RoHS, SAE J575 – Shock/Vibration |
| Max Distance @ 1 Lux | 755m (without protective covers) |
| Max Width @ 1 Lux | 105m (with flood covers) |
PERFORMANCE
DOWNLOADS
TBA
