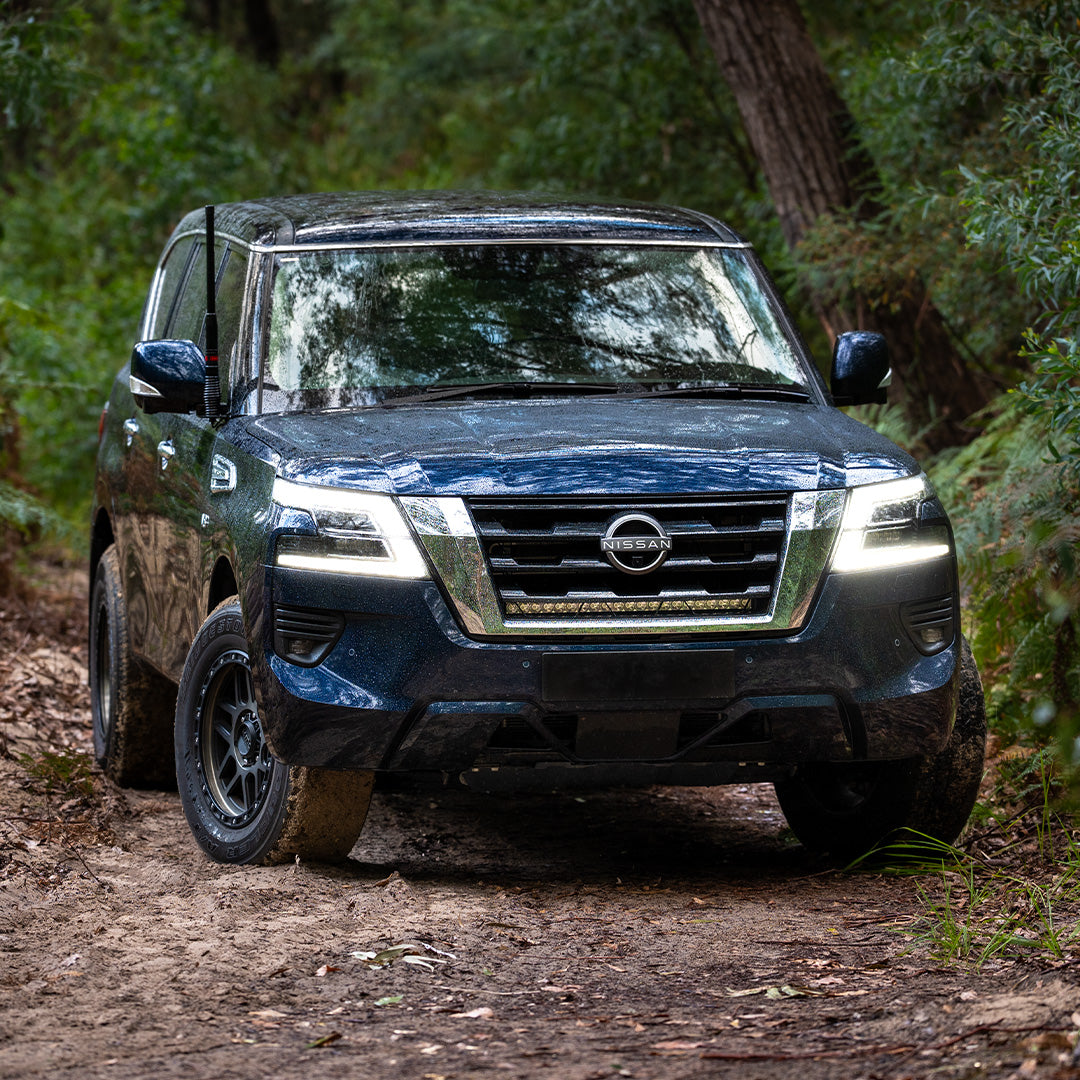

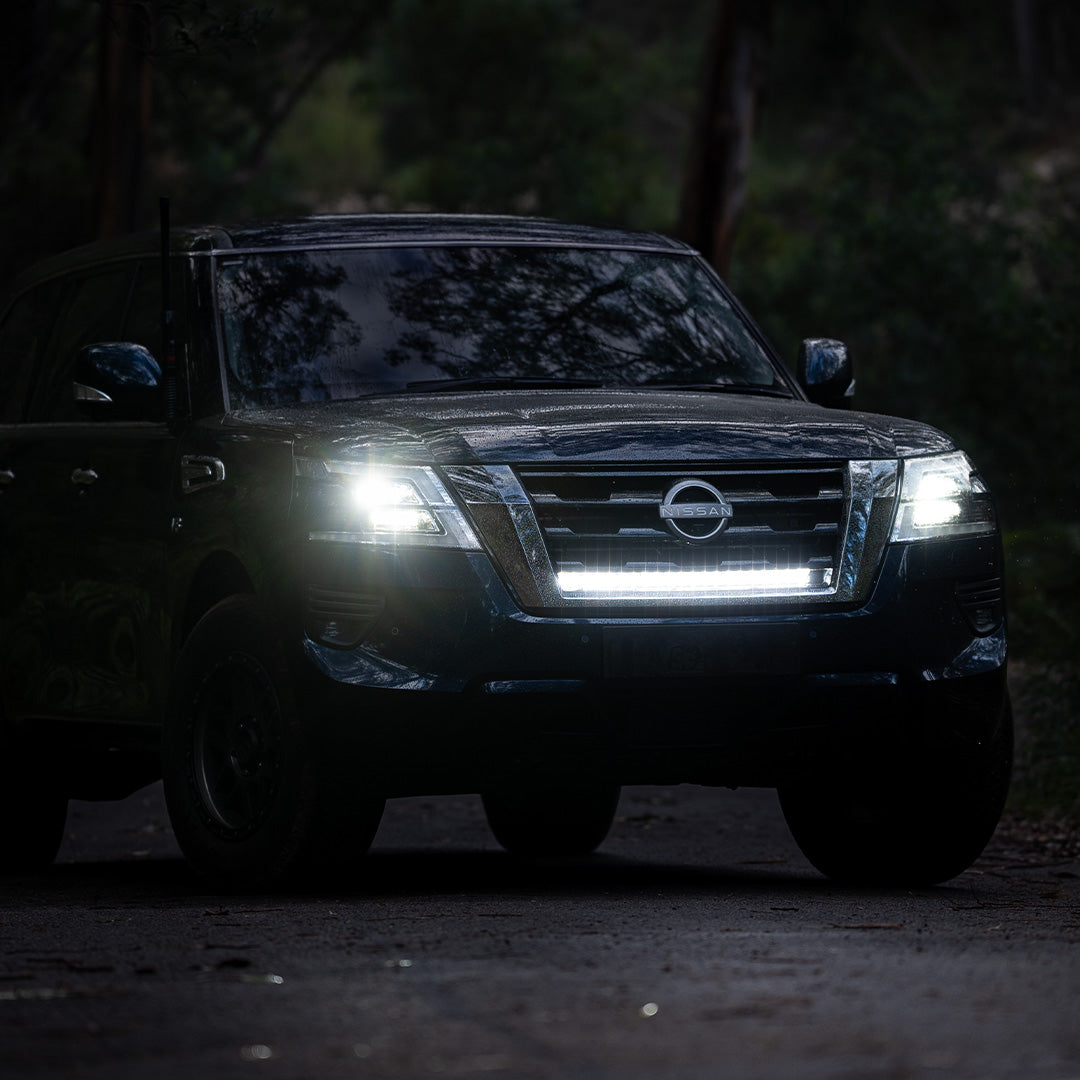

The Behind Grille Light Kit includes a 28” light bar that provides excellent spread and distance, making it ideal for all night-time driving. Over 4 times the output of standard factory high beams with no need for bull bars or external mounts, this is the discreet lighting upgrade your Patrol deserves.

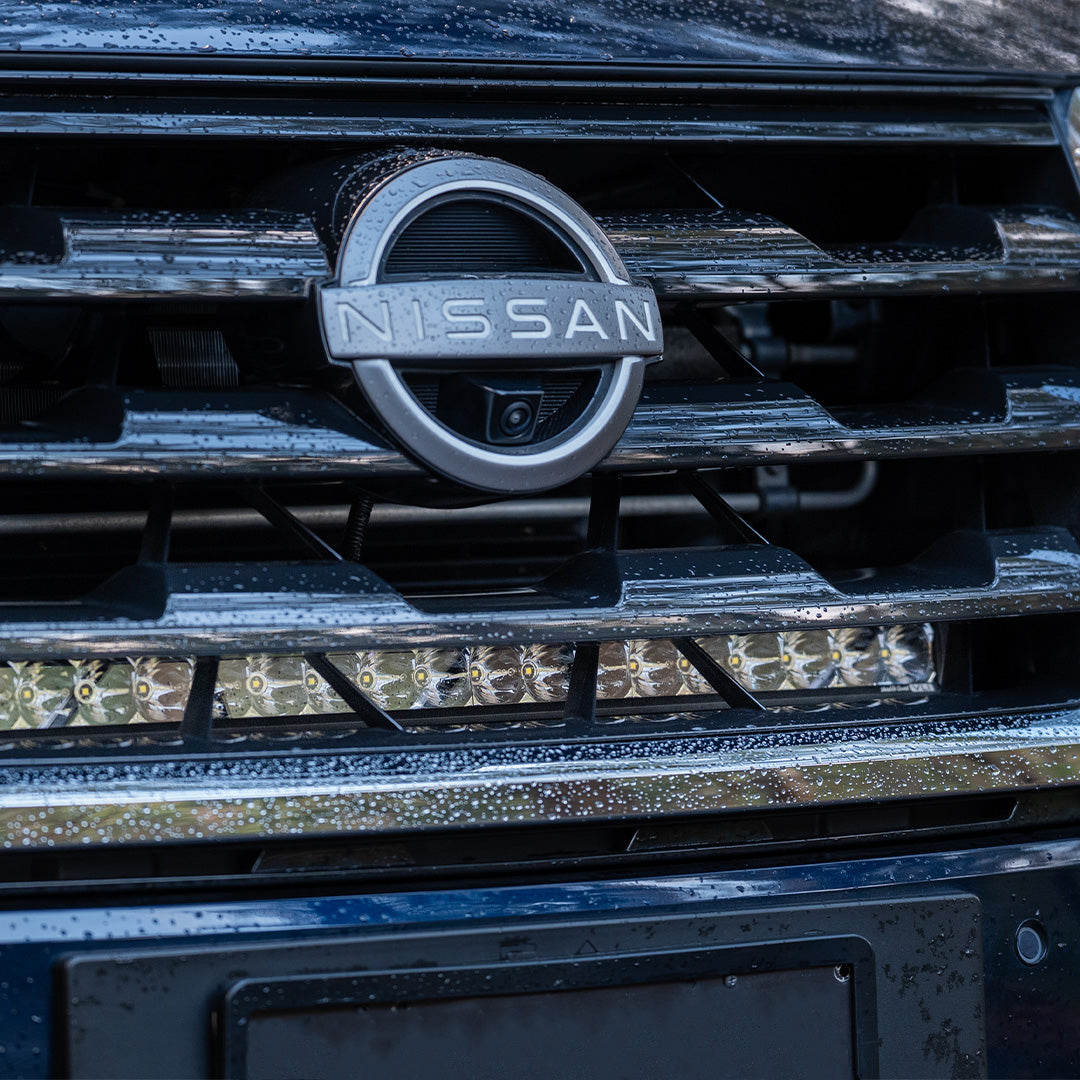

Included within the kit is a plug-and-play wiring loom and an OEM-style on/off switch for simple, easy installation. Mounting directly to the body of the Patrol with no trimming required, the installation process is completely hassle-free.
SPECIFICATION
Kit CONTENTS:
NHBGN250LB
• 1 x Night Hawk 28″ Driving Light
• 1x Wiring loom
• 1 x Headlight Adaptor
• 1 x OEM style switch
| 28” Night Hawk Light BAR | |
| POWER | 90W |
| CURRENT DRAW | 6.3A @14.4V |
| Voltage Range | 10-30V DC |

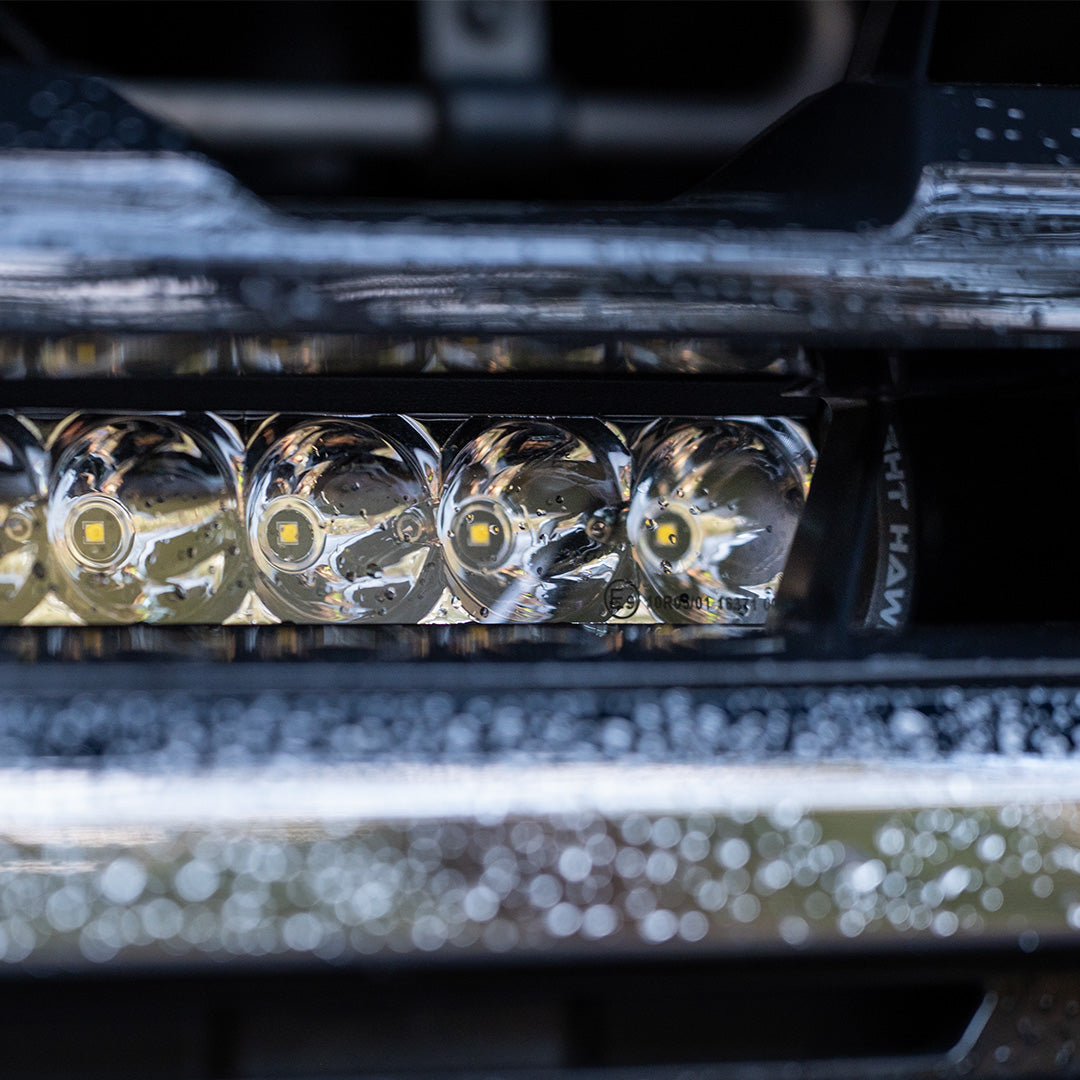

| LED TYPE | 21 x Genuine OSRAM LED’s |
| Luminous Flux | 7,360 (effective) without protective covers |
| COLOUR Temperature | 5700K (72 CRI) |
| Compliance | CE, UNECE R10, IP67 & IP69K, RoHS, SAE J575 – Shock/Vibration |
| Max Distance @ 1 Lux | 755m (without protective covers) |
| Max Width @ 1 Lux | 105m (with flood covers) |
DOWNLOADS
TBA
