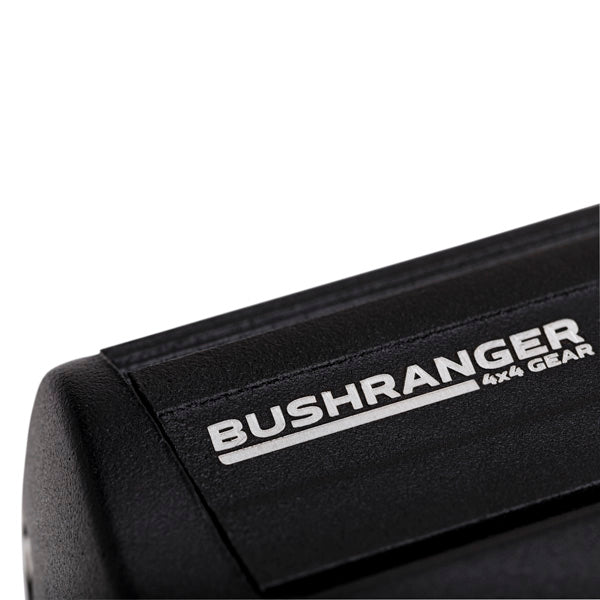

DURABLE EXTERIOR UV stable polyester powder coat, polycarbonate lens and covers ensure long term durability to handle even the toughest Australian conditions.

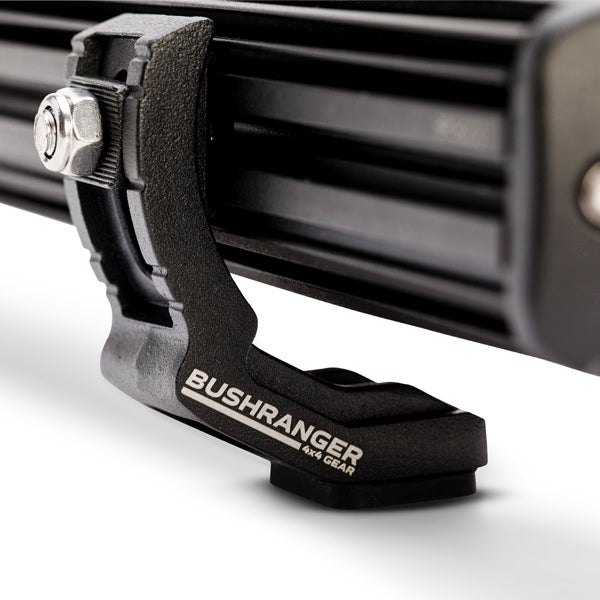

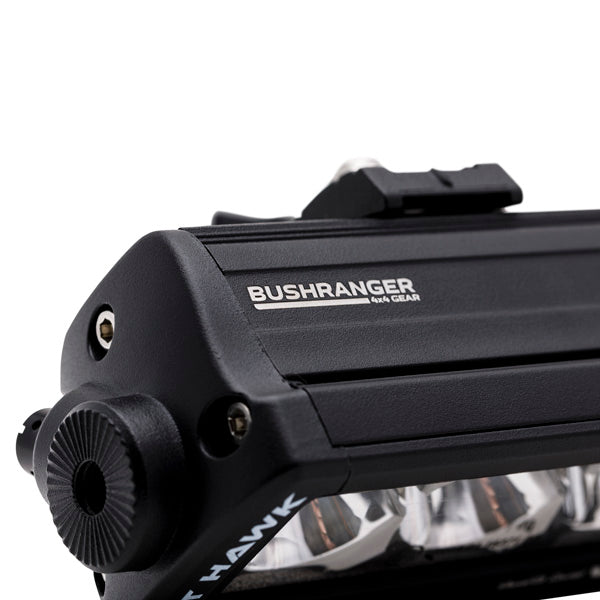

BUILT TOUGH Extruded, 6061 aircraft grade aluminium housing and cast alloy mounting feet offers long term strength and durability.

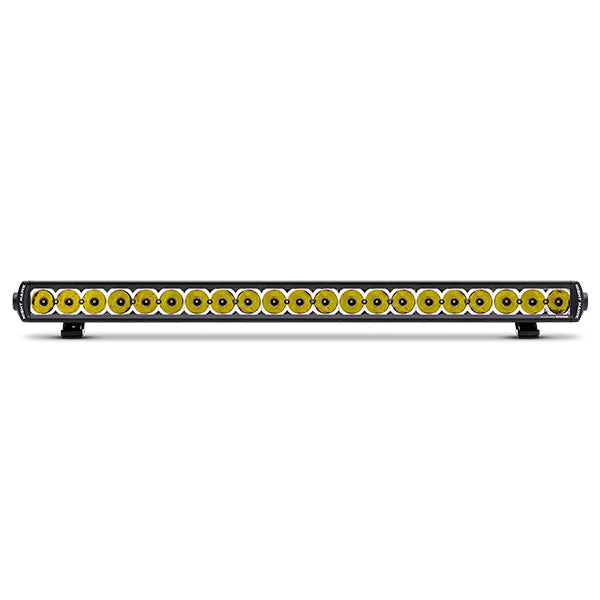

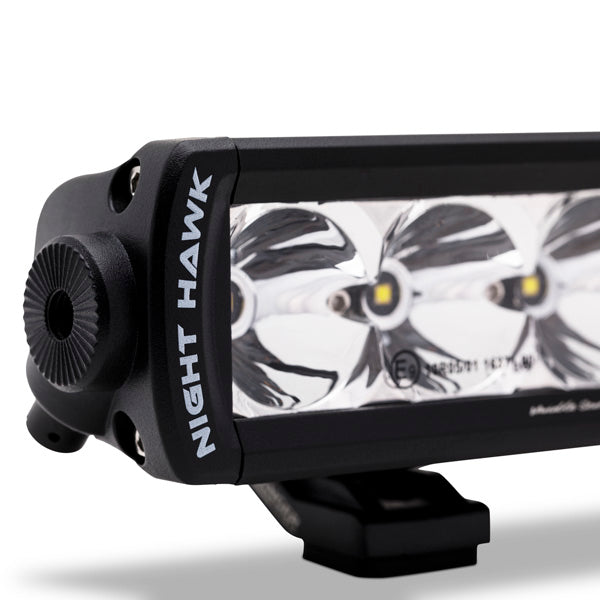

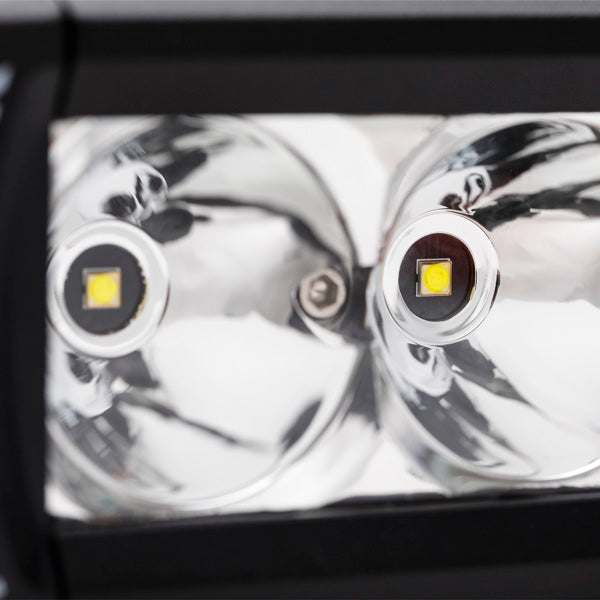

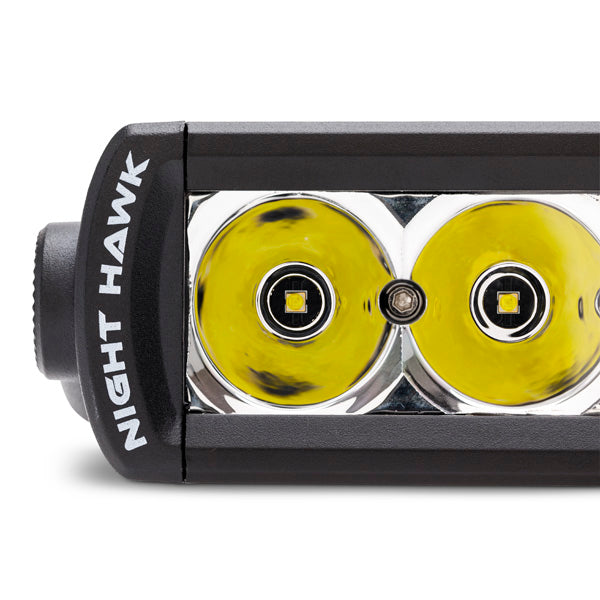

HIGH OUTPUT OSRAM LED’S genuine, high output OSRAM LED’s for unmatched performance.
MODERN ELECTRONICS DESIGN Built in Transistor switching simplifies wiring installation by removing the need for traditional 12V relays. PWM dimming capability for brightness control at the turn of a dial. (Wiring system sold separately)
ACTIVE TEMPERATURE CONTROL SYSTEM Intelligent onboard monitoring of the LED temperatures, combined with the superior cooling design, allows for maximum output in all conditions.

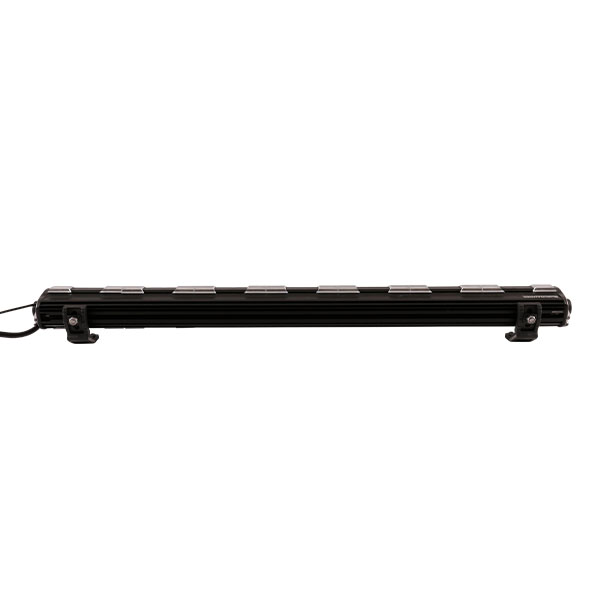

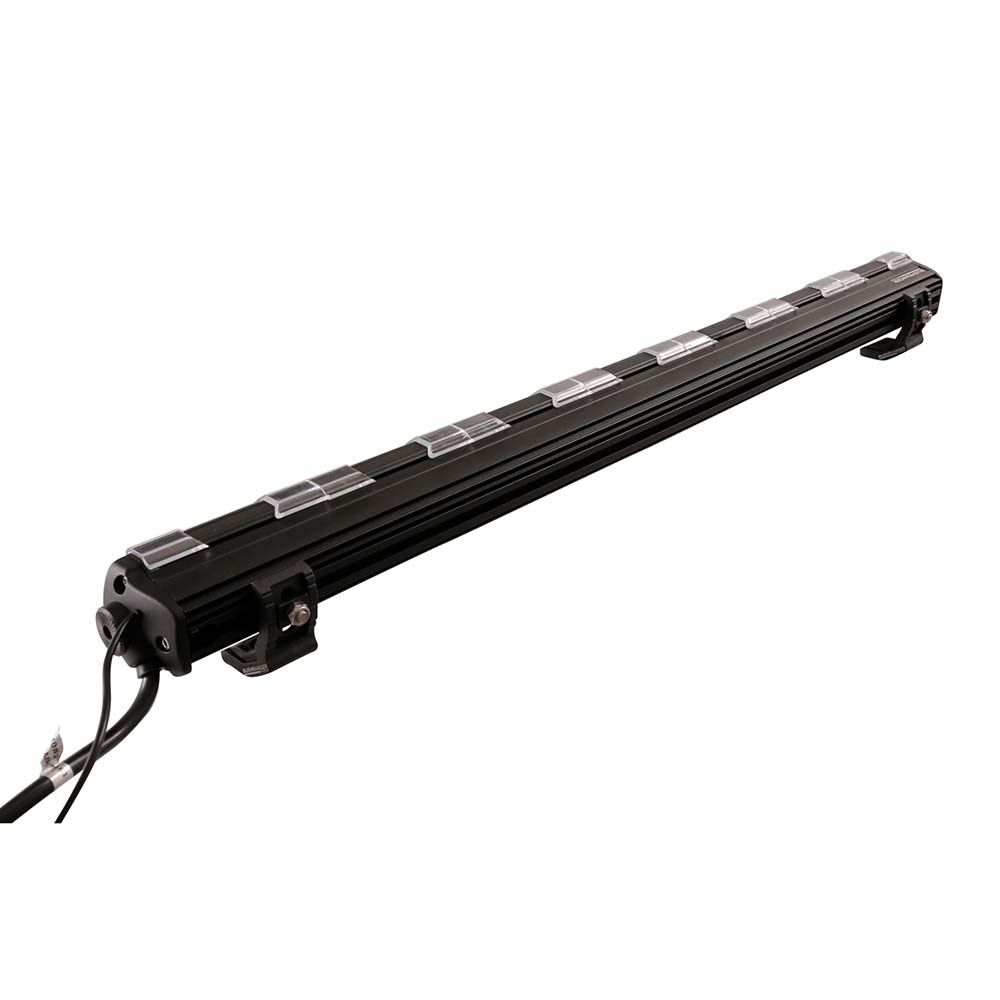

VERSATILE INSTALLATION Lightweight and a low-profile design with highly adjustable sliding mounting feet allow for diverse fitment.

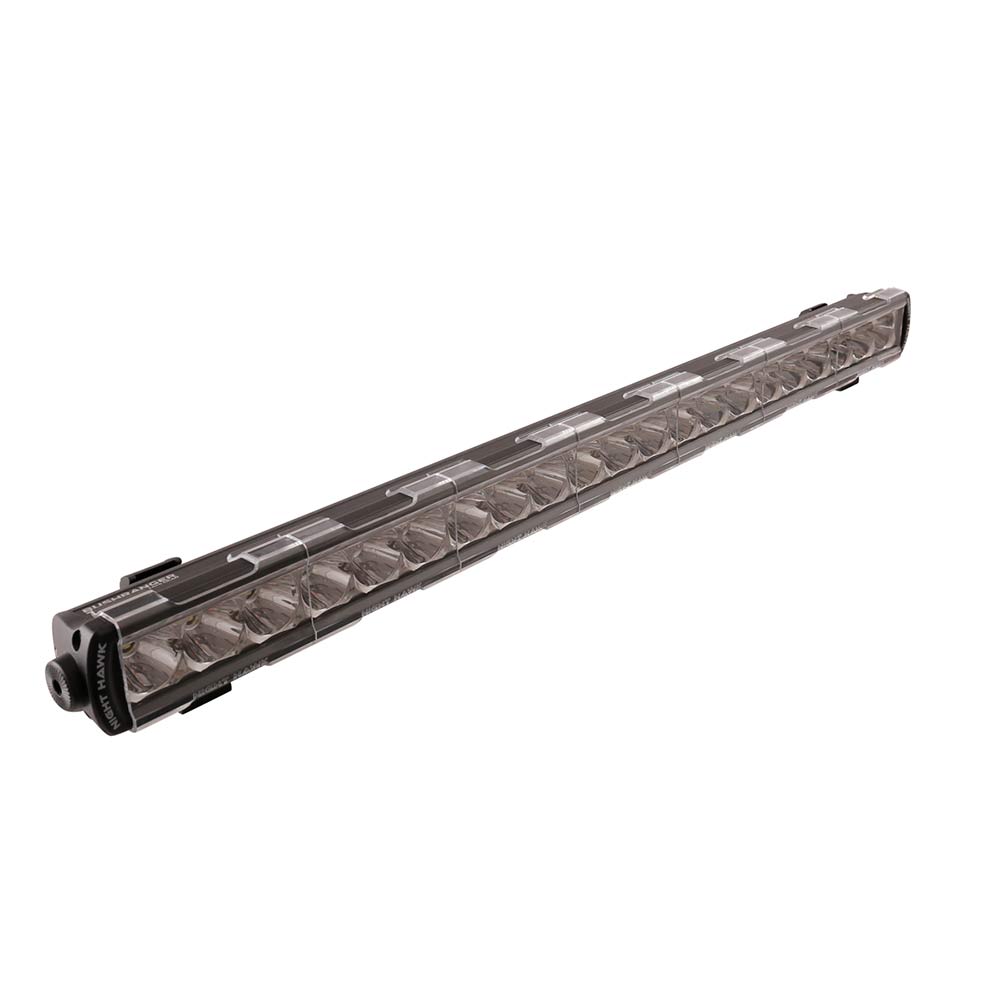

CHANGEABLE BEAM PATTERN Full set of clip on/clip off spot beam and flood beam protective covers allows complete customisation of the beam pattern.
ACCESSORIES AVAILABLE Protective covers: spot, flood, diffused, black, clear and orange and clamp brackets (pair). (sold separately)
SPECIFICATION

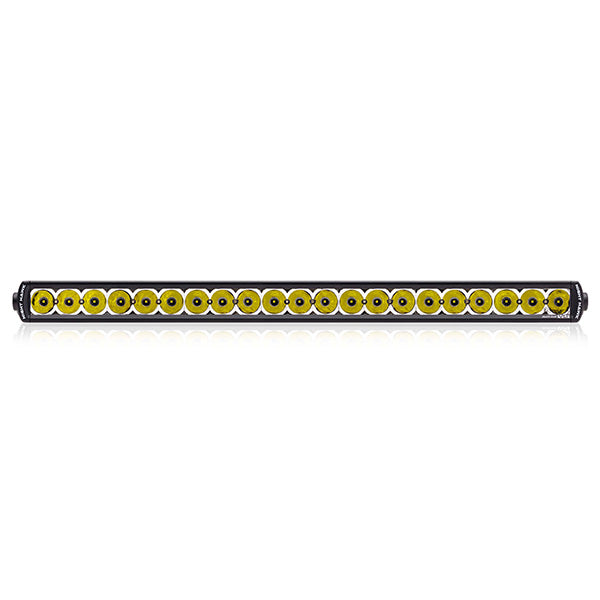

SIZE: 28"
POWER: 90W
CURRENT DRAW: 6.3A@14.4A
VOLTAGE RANGE: 10-30VDC
GENUINE OSRAM LED QTY: 21
LUMENS (EFFECTIVE): 7360 (without covers)
COLOUR TEMP: 5700K
POWER PLUG: Deutsch DT
WEIGHT: 2.10kg
OVERALL LENGTH (L): 717mm
MOUNTING HOLE ADJUSTMENT RANGE (D): 642mm
NO. OF COVERS: 7
MOUNTING FEET: 2
WARRANTY: 5 years

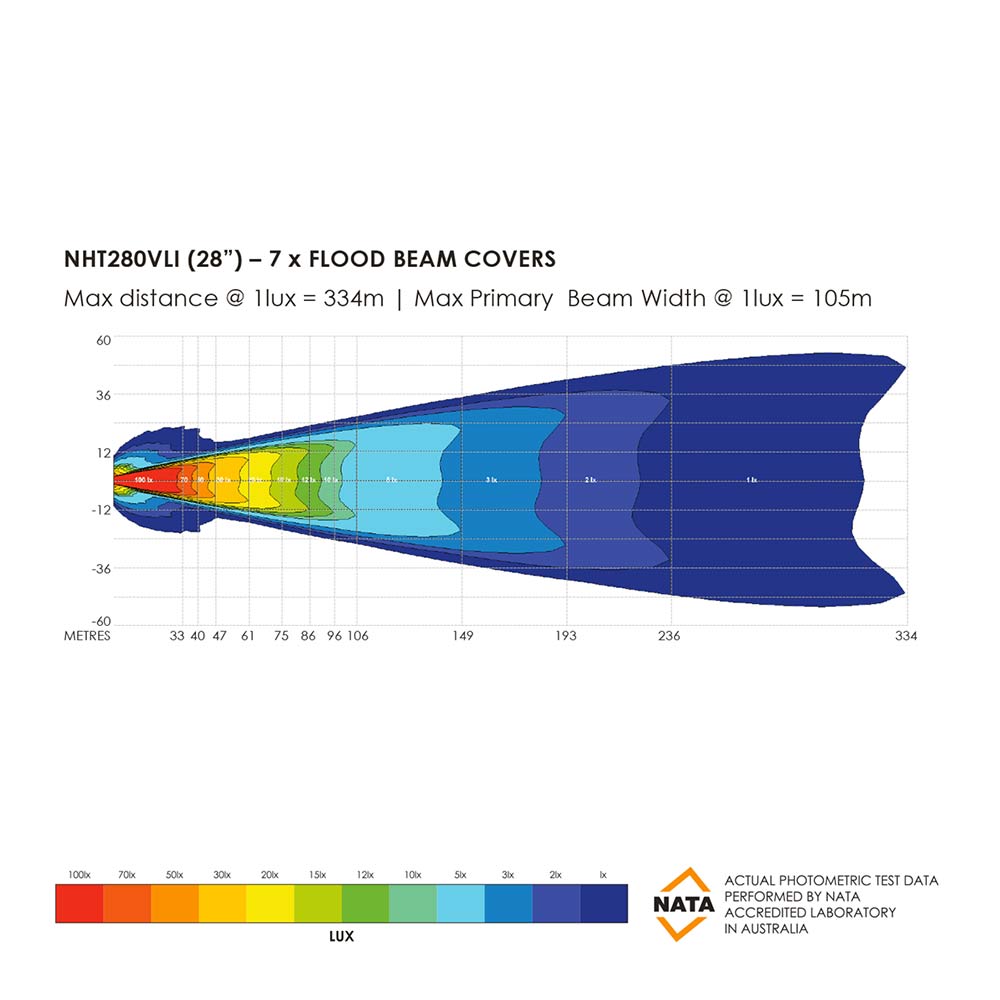

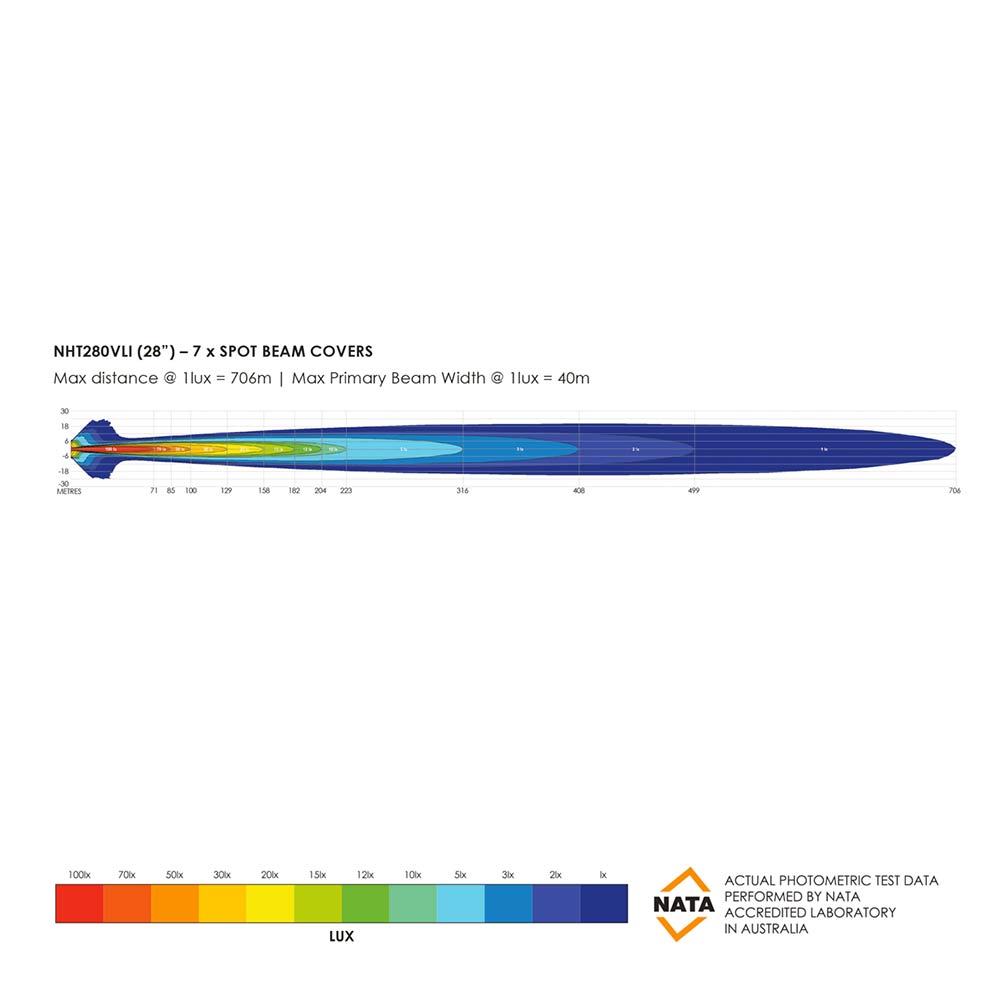

| WITHOUT COVERS | SPOT | FLOOD | |
|---|---|---|---|
| Max distance @ 1 lux | 755m | 706m | 334m |
| Max Width @ 1 lux | 51m | 40m | 105m |
DOWNLOADS
Refer to Night Hawk VLI Series Light Bar Owners Manual
Variable Series Light Bar User Manual
Important Fitment Note: Ford Ranger, Volkswagen Amarok, Jeep Wrangler Vehicles. Click here
Important Fitment Note: VLI Control Plug Connections. Click here
