The Night Hawk ADV Driving Lights deliver dependable lighting performance for drivers who want quality and value in one package. Designed with longevity in mind for both daily driving and off-road 4WD adventures, these lights offer a perfect balance of beam distance and spread thanks to a carefully engineered combination of LED chips and precision reflectors.

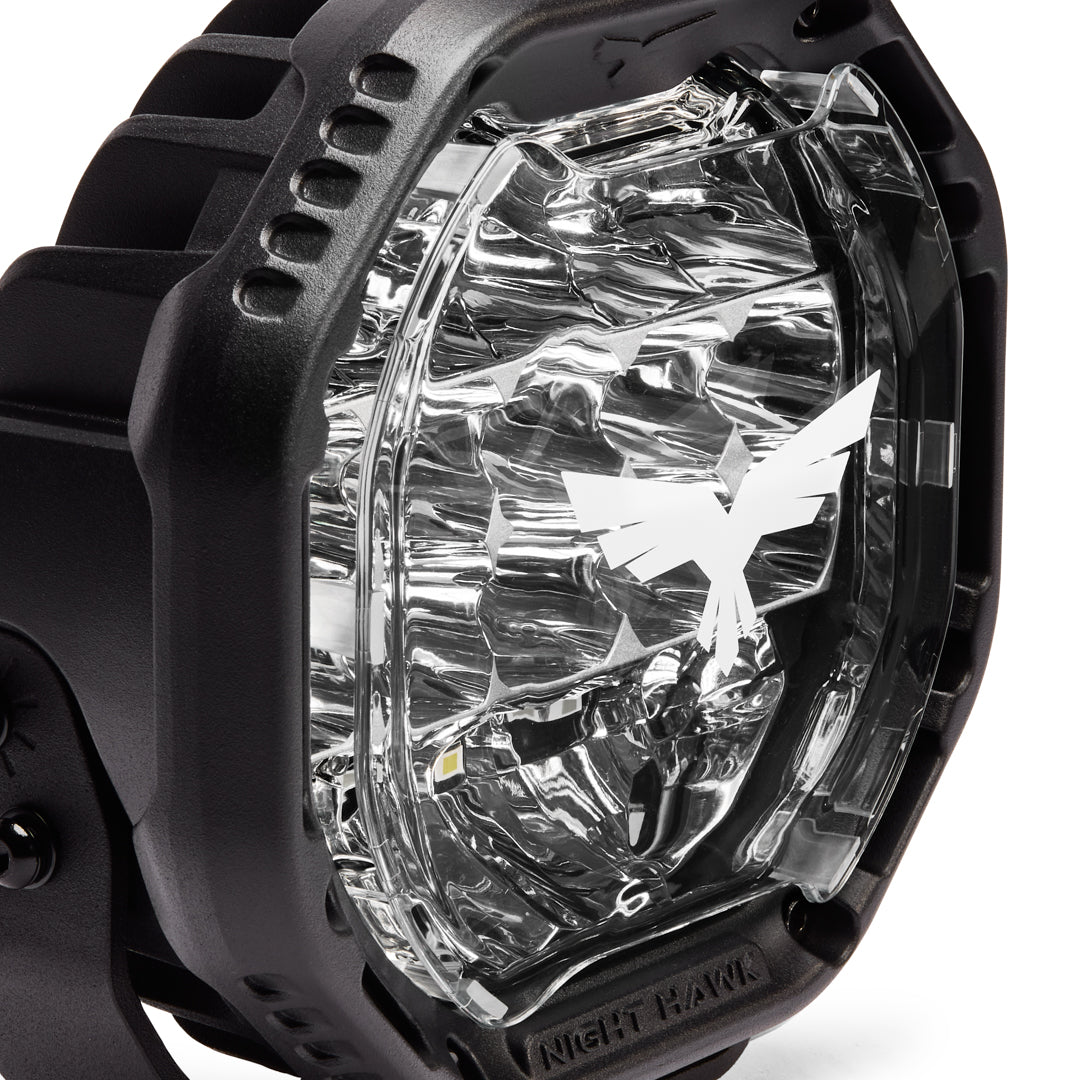

Instantly recognisable with our signature Night Hawk style with a modern 3D lens and stylish protective covers. Available in a compact 7″ or a larger 9″ size, each single light includes a 3 x interchangeable protective covers featuring the signature bird (Clear, Amber Frosted & Black Solid), stainless-steel mounting hardware.
The slim design adds a commanding presence to your vehicle without sticking out too far. Inbuilt with three distinct reflector designs, they not only provide a modern, high-tech look, but are also practical, providing an all-round short, medium, and long distance throw. This combination lights impressive long-distance output with a wide-beam pattern, giving you the confidence on highways, outback tracks, and everything in between. Built tough with a die-cast aluminium body, impact-resistant 3D polycarbonate lens, and stainless-steel hardware and secured by the 4mm stainless steel bracket featuring dampening rubber mounts to minimise vibration for long-term reliability, the Night Hawk ADV range is made to deliver in Australia’s harshest environments, for years to come.
The ADVs present IP68/IP69K rating for dust and water ingress, SAE J575 vibration and shock compliance, and a 3-year warranty.
Users will have a bright future ahead, with confidence knowing your setup will last.
7″ SINGLE Contains:
1 x 7″ Night Hawk ADV LED Driving Light
1 x Set of Mounting Hardware
1 x Protective Clear Cover
1 x Protective Black Out Cover
1 x Protective Frosted Amber Cover
FEATURES
MULTI LED & REFLECTOR DESIGN

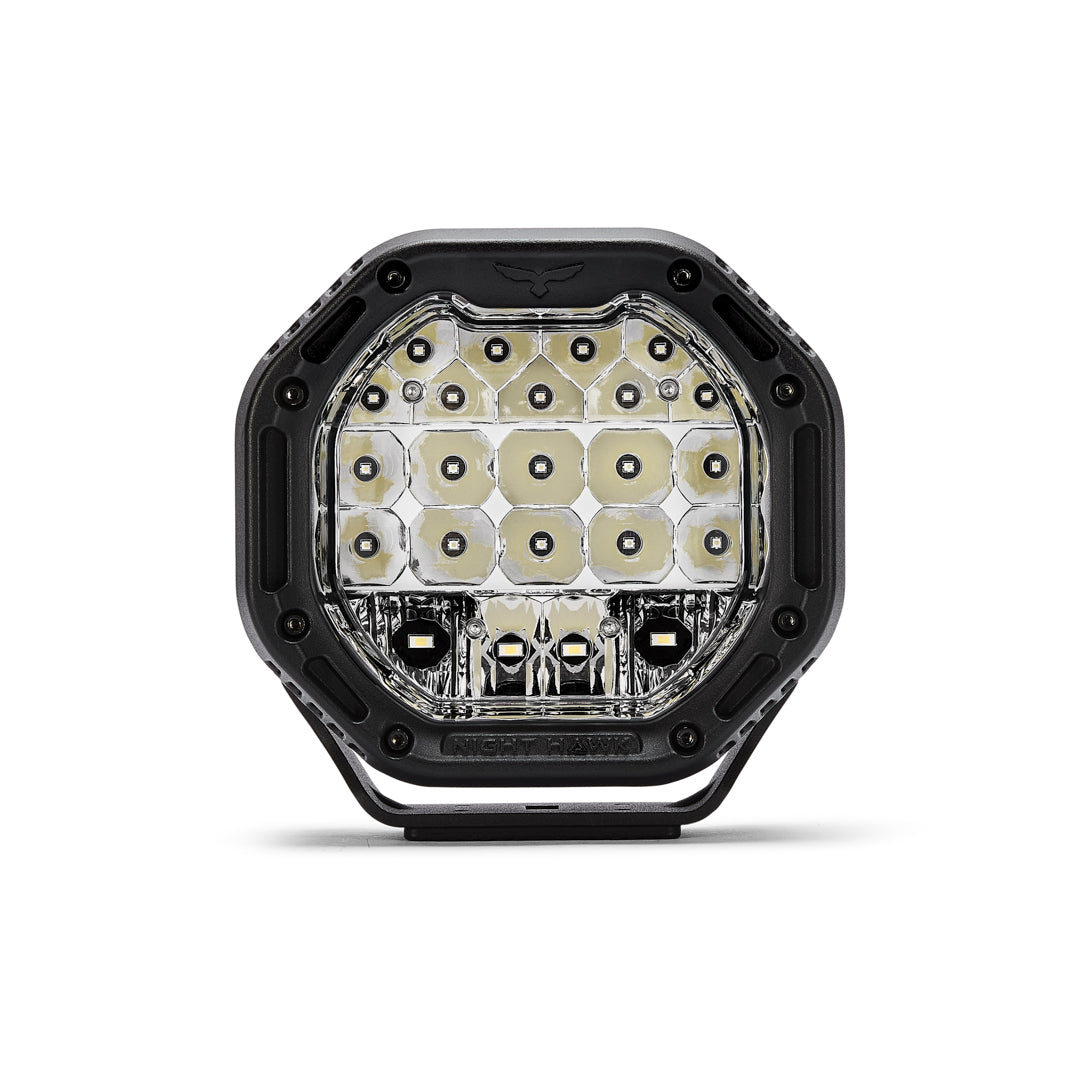

The ADV range combines two types of LED chips with purpose-built reflectors to create a perfectly balanced beam pattern. The middle section pairs powerful LEDs with long-distance spot reflectors for extended reach, while the upper section utilises medium-to-short throw reflectors for optimal forward projection. In the lower section, larger LEDs work with dedicated flood reflectors to maximise side illumination.
POWERFUL OUTPUT
The Night Hawk ADV lights deliver outstanding illumination with 23 LED chips in the 7” model and 27 LED chips in the 9” model, producing a clean 5700 Kelvin colour temperature for bright, natural white light. The 7” kit offers an impressive 19,556 effective lumens, while the 9” kit pumps out 25,640 effective lumens, ensuring excellent visibility in all conditions. 1,013m at 1lux with 90m spread, in the compact but powerful 7” and for maximum visibility, 1,285m at 1lux with 105m spread for the 9” kit.
BUILT TOUGH
Engineered for strength and durability, the ADV lights combine a high-impact 3D polycarbonate lens with a robust die-cast aluminium housing. Powder-coated in UV-stabilised finish, this heavy-duty construction ensures lasting protection against harsh conditions, flying debris and off-road punishment.
SMART PROTECTION
Designed for consistent, reliable output, a purpose-built housing maximises heat dissipation to maintain brightness, even in no-airflow environments. At the same time, advanced inbuilt voltage and thermal management systems protect against overheating and voltage spikes, while electronic interference shielding minimises disruption to nearby wireless signals.
MODERN STYLING

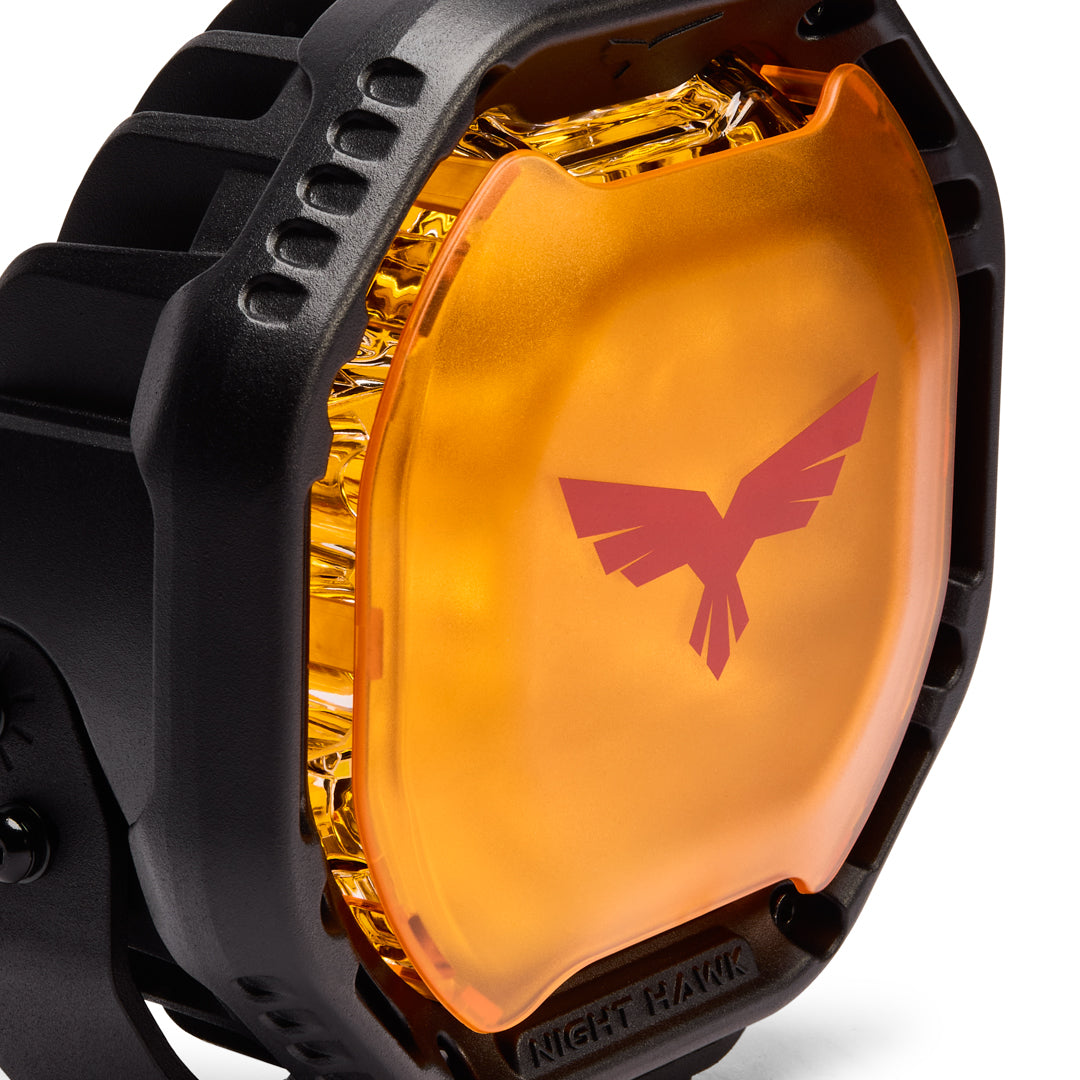

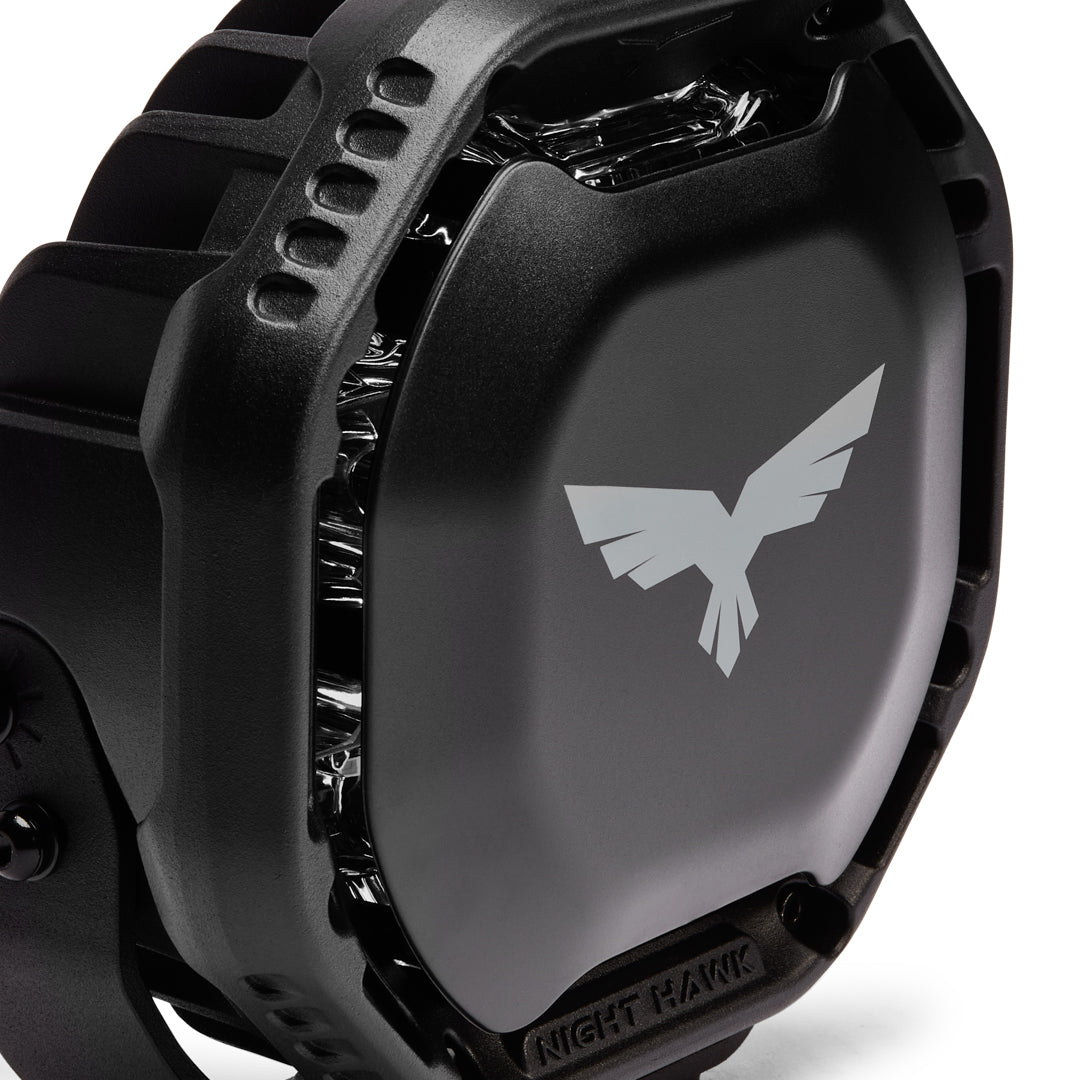

Providing a sleek, high-tech appearance suitable for the front of your vehicle. Each light comes standard with three interchangeable protective covers: Amber, Clear, and Blackout, allowing you to customise your lights to your style or driving needs.
WATER & DUSTPROOF
Engineered to perform in the harshest environments, the Night Hawk ADV lights are IP68 and IP69K rated, making them completely dustproof and able to withstand full submersion as well as high-pressure water cleaning. A slip-on breather helps prevent condensation from forming inside the light, ensuring clear, consistent performance.
PLUG & PLAY HARNESS
Each kit includes a high-capacity plug-and-play wiring harness, 300W for the 7” lights and 600W for the 9” lights, designed to make installation simple. The integrated on/off switch keeps operation simple, with no modes or settings to worry about. Just flick the switch and light up the night.
SECURE MOUNTING SYSTEM
Utilising a heavy-duty mounting system with 4mm stainless steel brackets and a 3-pin bolt pattern on the 9” model to keep your lights firmly in place, even after hundreds of kilometres of corrugated roads. Positioning is quick and precise thanks to adjustable bolts with rubber-inserted mounts, which also help dampen vibration for improved durability and performance.
AUSTRALIAN TESTED
Tested and proven in Australia for Australian conditions, the Night Hawk ADV lights go beyond our NATA-accredited lab testing for output and beam performance. They’ve endured Bushranger’s torture tests to ensure they deliver the reliability, output, and longevity you trust.
SPECS & PERFORMANCE
SPECIFICATIONS
| 7” Driving Lights | NHA180AK | |
| BEAM PATTERN | Combination |
| INPUT VOLTAGE | 10-30V |
| POWER (W) | 248.4 |
| CURRENT DRAW | 20.7A @12V |
| COLOUR TEMP | 5700K |
| POWER PLUG | DT Deutsch |
| EFFECTIVE LUMENS | 19,556 |
| MAX DISTANCE (1 LUX) | 1,013m |
| MAX WIDTH (1 LUX) | 90m |
| FITTED WEIGHT | 3.7kg |
| COMPLIANCE | CE, UNECE R10, IP68, IP69K, RoHS, SAE J575 – Shock/Vibrations |
| WARRANTY | 3 years |
PERFORMANCE
Isolux Data was obtained from real scientific testing carried out by a NATA-accredited photometric Laboratory in Australia. Note: Measurements shown without optional protective covers.
DIMENSIONS
DOWNLOADS
Night Hawk ADV Series driving lights 7" & 9" owners Manual : Here
Wiring Loom Owners Manual : Here
